Huaihai Cargo Tricycle【Q7C】

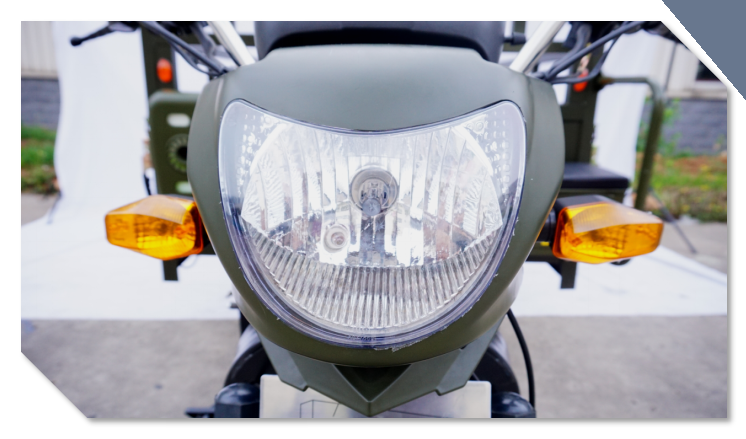

High-brightness headlights provide a wide range of lighting environment,which can illuminate about 50 meters away,ensuring clear driving vision at night and safer riding.

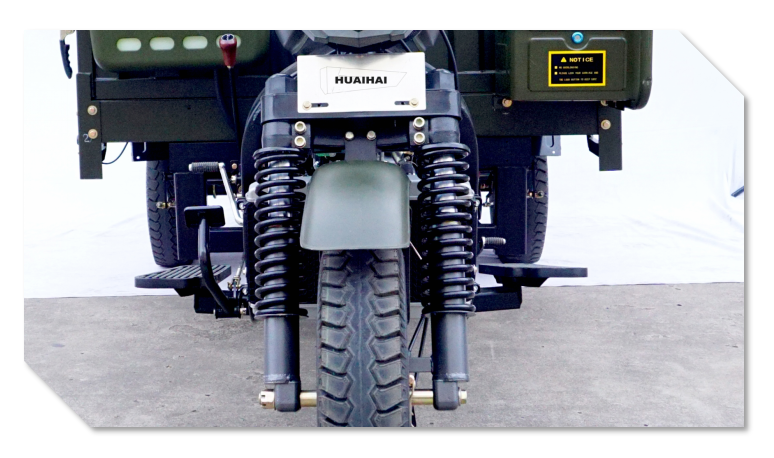

The single-connected φ43 spring shock absorber greatly improves the shock absorber effect of the whole vehicle, and the enlarged steering bearing makes the front shock absorber safer and easier during driving.

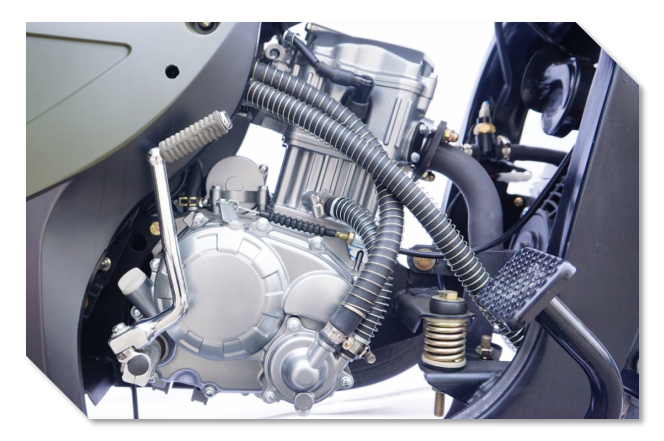

“Zongshen” 200cc water-cooled engine has the characteristics of strong adaptability to climate change, fast starting, and low maintenance, which reduces the operating cost.
The 15L large-capacity fuel tank can last up to 300 kms with no load, avoiding the problem of difficult refueling during long-distance travel.

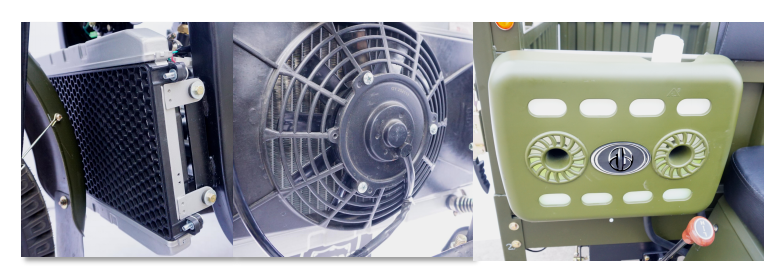

410*210mm water-cooled radiator, working automatically at 65°C, with rated 60w φ220mm fan, equipped with 10L auxiliary water tank, better heat dissipation, can effectively improve cooling effect, better protect the engine, Meeting the needs of tropical climates.
Enlarged air filter, larger air intake, three-stage filtration, coarse filter-sponge filter-paper filter, suitable for most usage scenarios, effectively improving the purity of engine intake.

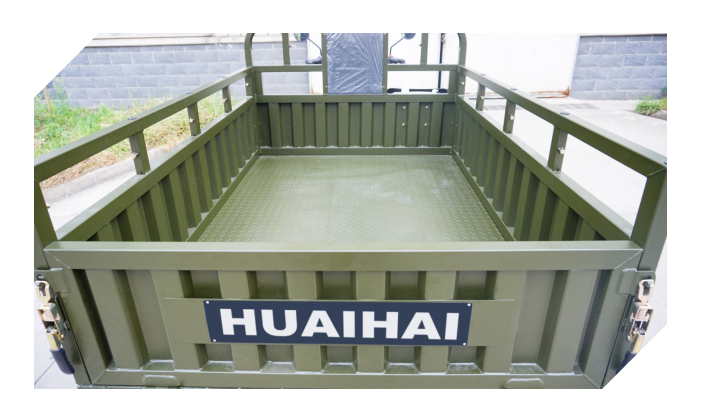

2000*1350*395mm engineering cargobox, has strong anti-deformation ability,the upper and lower positions of the panels are silently treated, and the driving has no noise.

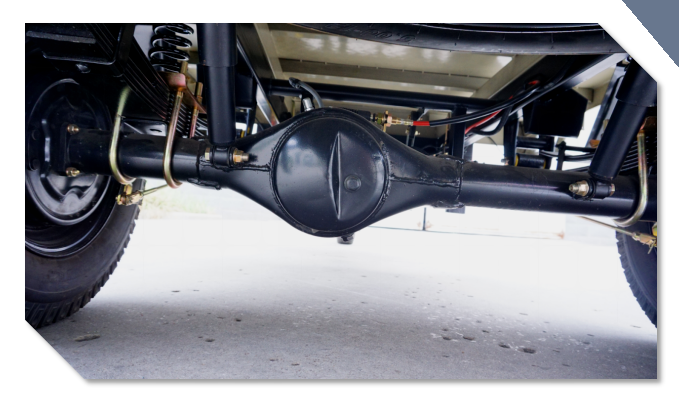

Integrated full-floating rear axle using 70mm*5mm thicker axle tube, modulated axle with high and low speed differential, more powerful at low speed.

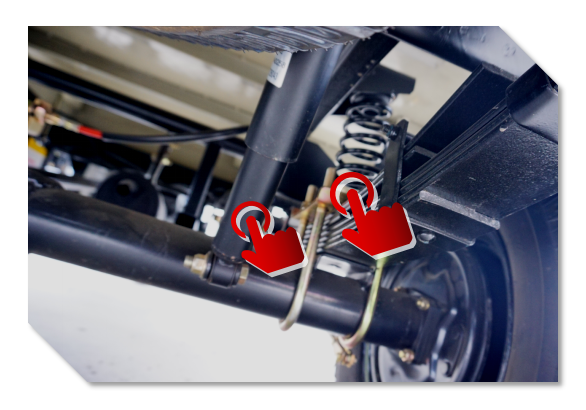

7pcs 70*7mm 60Si2MN steel leaf spring, bears more goods. By using dampers and coil springs, the vibration frequency of the rear axle is reduced when passing over bumpy roads to ensure the stability of the vehicle.

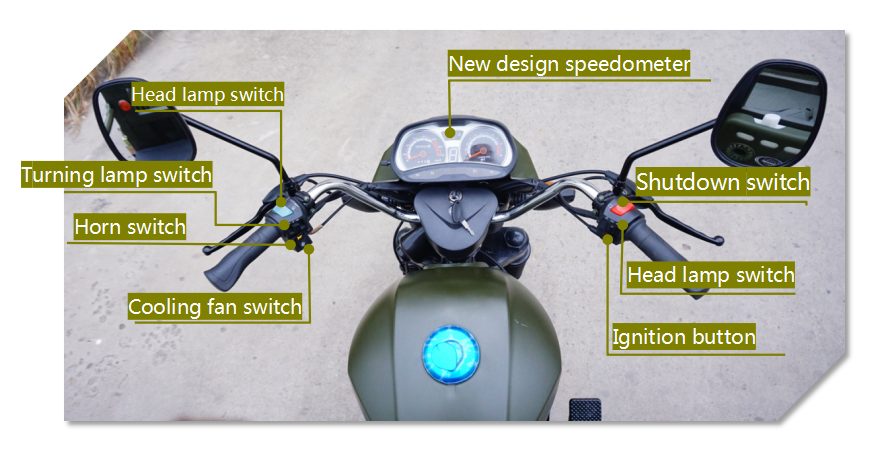

Handle-type direction control, left and right combination switch, simple and convenient control, mechanical combination instrument, simple, practical, clear at a glance.
